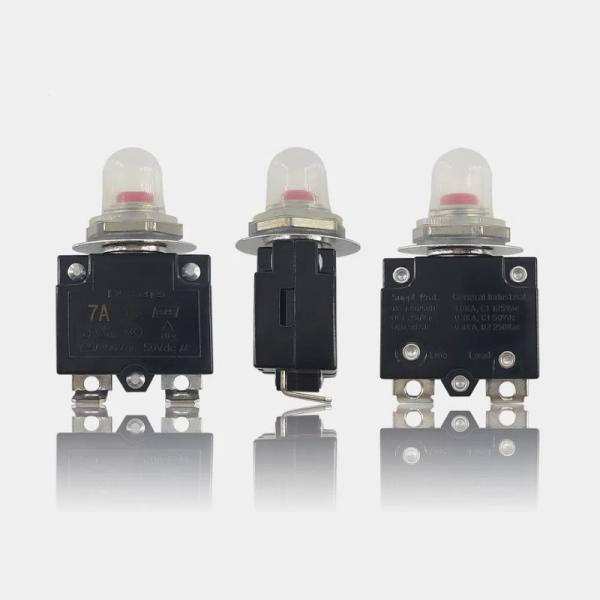

Waterproof HCET Overcurrent Trip Switch Circuit Breaker For Air Compressor

  • 1
  • 2
  • 3

Brand Name : HCET

Model Number : 88

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 1000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 500 pcs per carton

Product name : 98 thermal overload protector

Material : bakelite case

Voltage : 125/250VAC 50VDC

Current : 3-25A

Reset type : Manual reset

Application : Air Compressor

Contact Now

HCET WaterproofCircuit Breaker Thermal Overload Protector Overcurrent Protector for Air Compressor

HCET 88/98 series are mechatronic protection devices designed for air compressors and other high humidity and

strong vibration scenarios, utilizing bimetal mechanical drive: bimetal bending through the thermal effect of the current,

directly cutting off the circuit to protect the motor from overheating damage.

Product feature:

  • Moisture-proof sealing structure
    Adopt silicone sealing ring + Bakelite shell, isolate water vapor, oil mist erosion, life expectancy increased by 3 times.
  • Overload protection
    Bimetal responds to continuous overcurrent.
  • Short circuit protection
    Electromagnetic disconnecting mechanism instantaneously cuts off short-circuit current (≥5 times rated current, response time <0.05 seconds).
  • Manual disconnection control
    Top button operation

Electrical Characteristics:

1000A*125VAC
20A*250VAC
Breaking Capacity
 <60s
Recovery Time
1500/min
Insulation And Voltage Withstand Test
 3A~25A
Rated Current
<0.25V
Minimum Voltage
 >500VDC*100MΩ
Insulation Resistance
125/250VAC 50VDC 50~60HZ
Rated Voltage

Waterproof HCET Overcurrent Trip Switch Circuit Breaker For Air Compressor

Dimension size

Waterproof HCET Overcurrent Trip Switch Circuit Breaker For Air Compressor

Product detail

Waterproof HCET Overcurrent Trip Switch Circuit Breaker For Air Compressor

Application

Waterproof HCET Overcurrent Trip Switch Circuit Breaker For Air Compressor
