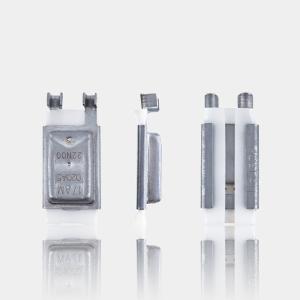

Bi Metal 17AM Thermal Protector Switch Motor Overload Protector For HVAC Compressor

  • 1
  • 2

Brand Name : HCET

Model Number : 17AM

Certification : CQC, UL, ROHS, TUV, CE

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 5000 pcs per carton

Product name : 17AM thermal protector

Temperature range : 50~180℃

Tolerance : ±3℃,±5℃

Voltage : 250V

Current : <10A

Material : Metal

Feature : Snap action switch

Application : HVAC/Compressor/Appliance

Contact Now

HCET 17AM Bimetal Thermal Protector Switch Motor Overload Protector for HVAC/Compressor/Appliance Safety


The HCET 17AM Bimetal Thermal Protector is a precision-engineered motor protection device designed for dual-sensitive (temperature & current) circuit interruption. As a direct replacement for Klixon 17AM series, it ensures reliable overload protection in motors (AC/DC), HVAC systems, compressors, power tools, and home appliances. With calibrated temperature accuracy (±3℃/±5℃) and high current capacity (20A 125VAC), this RoHS-certified protector combines compact size with industrial-grade durability, preventing equipment failure due to overheating or overcurrent conditions.


Product feature:

  • Dual-Sensitive Protection
    Simultaneously monitors temperature (50-180℃ range) and current (up to 10A), triggering instant circuit breakage for motors, pumps, and compressors in overload scenarios.
  • Precision-Calibrated
    100% factory-tested with ±3℃ tolerance (customizable to ±5℃), ensuring consistent thermal response across HVAC systems and industrial equipment.
  • High-Current Compact Design
    Delivers 20A/125VAC switching capacity in space-constrained installations - ideal for power tools, air compressors, and fluorescent ballasts.
  • Multi-Industry Compliance
    Certified RoHS compliant for global markets, compatible with UL/CE standards (specify if applicable). Validated in:
    Motor-driven systems (pumps, fans)
    Appliance safety circuits (heaters, dryers)
    Industrial automation equipment
  • Universal Terminal Options
    Flexible wire configurations (same/opposite end terminals) and custom lead lengths available for seamless integration with motor windings, transformers, and control panels.

Electrical Characteristics:

50℃~180℃
Temperature Range
(Customizable temperature, please contact us.)
±3℃ ±5℃
Temperature Tolerance
20amps/16volts DC
20amps/125 volts DC
10amps/250volts AC
Electrical Specifications


Dimension size

Bi Metal 17AM Thermal Protector Switch Motor Overload Protector For HVAC Compressor


Product detail

Bi Metal 17AM Thermal Protector Switch Motor Overload Protector For HVAC Compressor

Application

Bi Metal 17AM Thermal Protector Switch Motor Overload Protector For HVAC Compressor
